उत्पत्ति के प्लेस:
चीन
ब्रांड नाम:
Lishunyuan
प्रमाणन:
CE
मॉडल संख्या:
LY-RK03-1113
दस्तावेज:
वीडियो

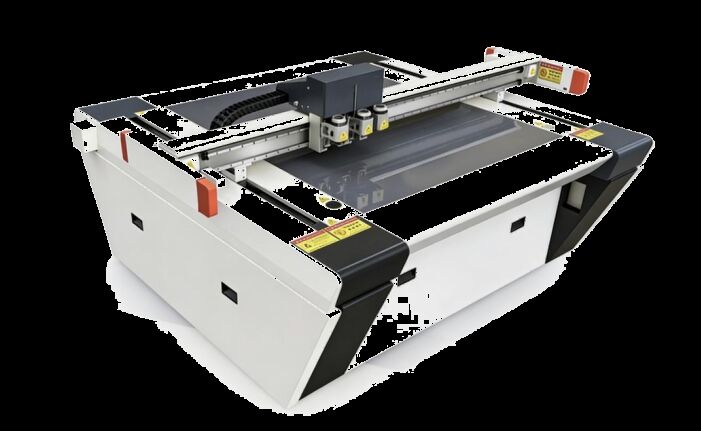

LY-RK03-1113 No-die Non-metal Flexible Material Cutting Machine(Sample maker machine)
The LY-RK03-1113 is a no-die cutting machine for non-metal flexible materials, designed for packaging and printing sample making and small-batch production. It integrates cutting, creasing, grooving, and half-cut functions. With a servo control system, ±0.05mm accuracy, and 50mm cutting thickness, it supports materials like greyboard, corrugated board, EVA, and foam. It features automatic tool setting, CAD/AI/DXF file support, and a built-in vacuum system.
Designed specifically for sample making and small-batch customized production in the packaging and printing industry.
This machine features a high-end servo control system and requires no die-cutting mold.
Mechanical Details
|
|
The integrated steel frame is welded from thickened high-carbon steel, ensuring no deformation or vibration under long-term high-speed operation. It provides stable mechanical performance, guaranteeing cutting accuracy and machine longevity. |
|
|
Built-in suction system that intelligently activates vacuum zones based on material size, delivering stronger and more uniform hold-down and significantly improving sheet flatness. It prevents edge lifting and shifting, and is suitable for both thin and thick boards. |
|
|
Three independently driven work heads allow multiple tools to operate continuously, and tools are interchangeable between modules. Thus, one machine handles cutting, creasing, grooving, and plotting.With a maximum cutting thickness of 50mm, the machine is compatible with corrugated board, grey board, paperboard, thin foam, leather, and other sheet materials, meeting daily sample-making needs. |
|
|
The built-in automatic tool setting system enables one-touch auto-setting and length compensation after a tool change, requiring no manual calibration. This ensures fast changeover with high precision.The high-precision servo-driven transmission system delivers cutting accuracy up to ±0.05mm and produces clean, burr-free edges. |
|
|
You can directly import CAD, AI, or DXF files and generate cutting paths with one click, allowing the machine to cut any complex shape with zero learning curve. |
|
Key components are protected against dust and debris, resulting in low failure rates and simple routine maintenance. Additionally, low energy consumption ensures environmentally friendly and cost-effective operation.Intelligent path optimization enables fast processing, shortening the sample-making cycle and allowing quick response to customer sample requests. |
|
|
1.Grooving (V/U-Groove) V/U grooving switchable, one-step forming for rigid & soft materials. |
|
|
2.Half-Cut Die Cutting Half-cut die cutting, cuts top layer only for easy-tear & connecting parts.
|
|
|
3.Creasing Uniform creasing, no cracking or wrinkling when folding.
|
|
|
4.Full-Cut Die Cutting No mold required, precise full-through cutting, suit for small-batch sampling. High-precision cutting with no wrinkling on thin paper and no edge bursting on thick paper. |
|
|
5.EVA Cutting Special non-stick cutter, smooth and clean EVA cutting.
|
|
|
6.Corrugated Board Cutting Integrated cutting, creasing, and slotting for accurate reproduction of carton structures. |
|
|
7.Adhesive Label Cutting Precision-controlled depth die-cutting that cuts through only the face paper and adhesive layer while leaving the liner intact. |
|
|
8.Foam Cutting Capable of high-precision cutting of complex contour shapes, suit for various packaging insert processing. |
|
Specifications |
|
|
MAX working speed |
1500mm/s |
|
MAX cutting speed |
1200mm/s |
|
Working accuracy |
±0.05mm |
|
Thinkness of work piece |
50mm |
|
Effective working size |
L1100mm*W1300mm |
|
Power supply |
380V±10% |
|
Total power |
5.5KW |
|
Machine dimension |
L2100*W2480*H1200mm |
